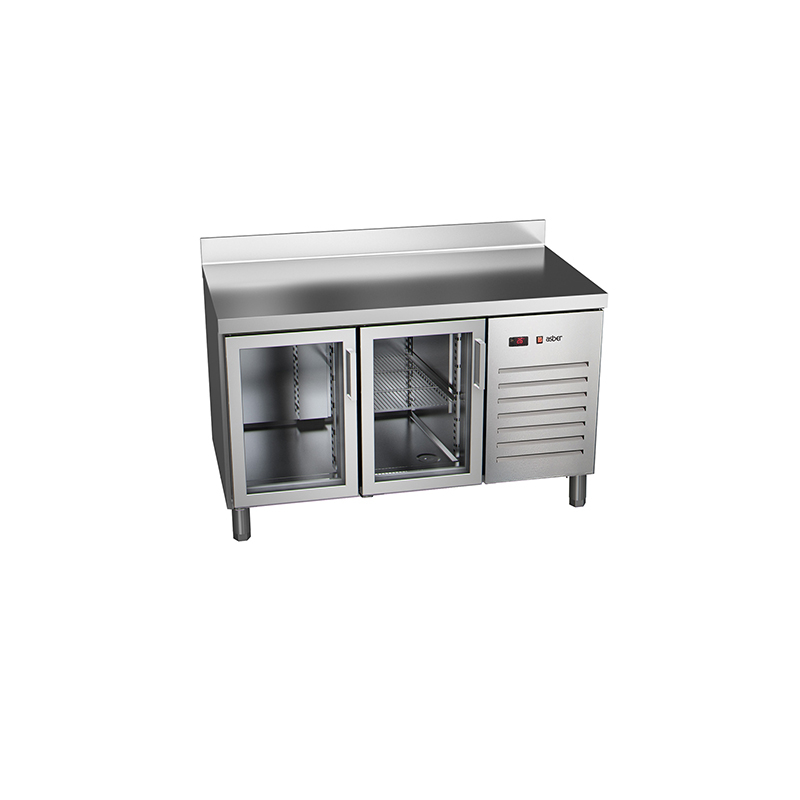

Display counters 600 mm
Display counters 600 mm
Specially manufactured in high-quality stainless steel for intensive professional applications, featuring a very robust design and perfect finishing.
Heavy-duty stainless steel 50 mm working top with 100 mm high splashback, preventing spillage behind the co
50 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane insulation, injected under high pressure.
Double-glazed doors insulated by a low thermal emissivity gas to reduce heat transfer
Ergonomic, nickel-coated zamak door handles.
Hinged doors with automatic return for a perfect closing that minimizes temperature gain. Doors have a 120° dwell position and close automatically at less than 90°.
Control panel and engine ventilation with pivoting front opening.
Intuitive digital control allows temperature parameters to be adjusted easily and quickly.
Luminous start-stop light button.
“Ventilation Gill” on the front panel keeping the cooling unit system ventilated and running more efficiently.
Forced draft evaporator with anti-corrosion cover.
Intelligent Air Circulation System ensures perfect temperature consistency with its innovative airflow design.
Automatic evaporation of defrost water. Hot gas coming from the compressor is used to automatically evaporate defrost water, instead of by means of heating elements, achieving even less energy consumption.
Internal, low energy consumption LED lighting to display the interior of the counter is available as an option.
Height-adjustable stainless steel legs. Height of the legs could be adjusted individually (130 mm – 200 mm) to enable convenient cleaning. Castors are available as an option.
Removable supports enable more convenient cleaning operations without any additional tools. Placing and adjusting the wire grids at the desired height is possible. Epoxy-coated wire grids, to improve protection, allow storage of different packaging types and have a maximum loading capacity of up to 40 kg.
3 grid level positions for increased loading capacity, with 70 mm distance among them.
Removable pull-out/push-in magnetic door gasket to keep maximum hygiene and maintain the insulating properties.
Rounded edge interiors, easier cleaning operations to reduce potential dirt traps.
Equipped with 1 grid 405x460 mm in each edge door and 1 grid 405x525 mm in centered doors.
Refrigerant gas: R290 Hydrocarbon (HC).
Working temperature of 0 ºC to +8 ºC in climate Class IV conditions.
Supply voltage: 230 V 1+N – 50 Hz.
Model
Reference
DOOR NO
ENERGY EFFICIENCY CLASS
CONNECTION POWER (W)
GROSS VOLUME (L)
ANNUAL ENERGY CONSUMPTION (KWH)
EXTERNAL W X D X H DIMENSIONS (MM)
ETP-6-150-20 GD
19099735
ETP-6-200-30 GD
19099736
ETP-6-250-40 GD
19099737
Technical datasheet
