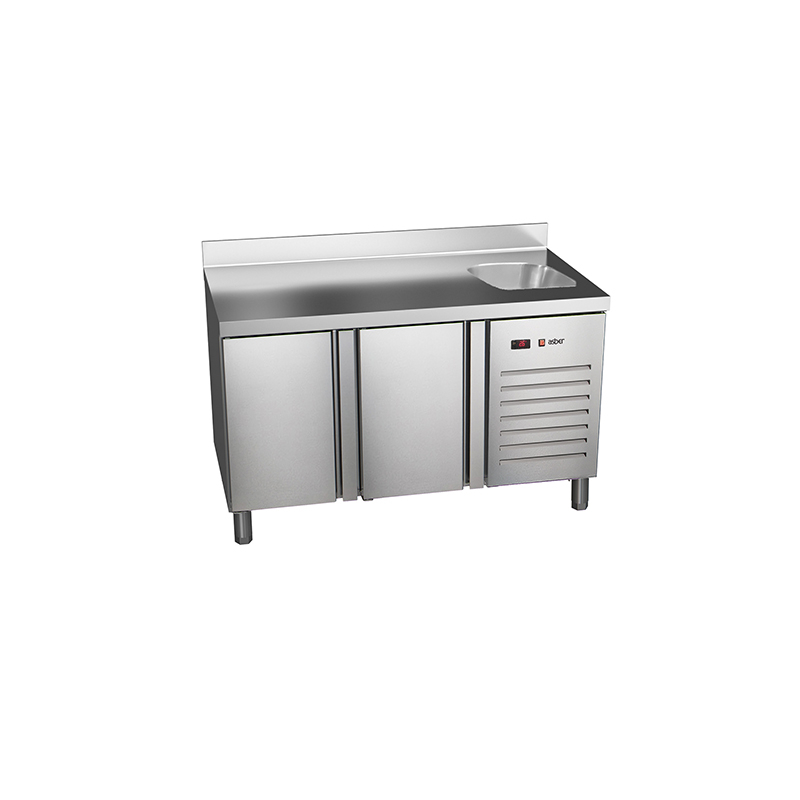

Refrigerated counters 700 mm GN 1/1 with sink
- Specially manufactured in high-quality stainless steel for intensive
professional applications, featuring a very robust design and perfect finishing.
- Heavy-duty stainless steel 50 mm working top with a sink bowl of 330x
330x 200 mm and 100 mm high splash-back, preventing spillage behind
the counter. Seamless, stamped sink bowl with generous radius to ensure
maximum hygiene
- 50 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane insulation,
injected under high pressure
- Stainless steel doors with ergonomic, full-length, robust, perfectly
integrated handle that ensures practical opening of the door and avoids
dust and dirt collection.
- Hinged doors with automatic return for a perfect closing that minimizes
temperature gain. Doors have a 120° dwell position and close automatically
at less than 90°. Door hinges are also reversible allowing the counter to be
adapted on-site.
- Control panel and engine ventilation with pivoting front opening.
- Intuitive digital control allows temperature parameters to be adjusted
easily and quickly.
- Luminous start-stop light button.
- “Ventilation Gill” on the front panel keeping the cooling unit system
ventilated and running more efficiently.
- Forced draft evaporator with anti-corrosion cover.
- Intelligent Air Circulation System ensures perfect temperature consistency
with its innovative airflow design.
- Automatic evaporation of defrost water. Hot gas coming from the
compressor is used to automatically evaporate defrost water, instead of
by means of heating elements, achieving even less energy consumption.
- Height-adjustable stainless steel legs. Height of the legs could be
adjusted individually (130 mm – 200 mm) to enable convenient cleaning.
Castors are available as an option.
- Removable guiding rails enable more convenient cleaning operations
without any additional tools. Placing and adjusting the wire grids at the
desired height is possible without using extra rails. Epoxy-coated wire
grids, to improve protection, allow storage of different packaging types
and have a maximum loading capacity of up to 40 kg.
- 6 grid level positions for increased loading capacity, with 70 mm distance
among them
- Removable pull-out/push-in magnetic door gasket to keep maximum
hygiene and maintain the insulating properties.
- Rounded edge interiors, easier cleaning operations to reduce potential
dirt traps.
- Suitable for food containers GN 1/1; equipped with compatible rails.
- Equipped with 1 grid GN 1/1 per each door.
- Refrigerant gas: R290 Hydrocarbon (HC).
- Working temperature of 0 ºC to +8 ºC in climate Class IV conditions.
- Supply voltage: 230 V 1+N – 50 Hz.
