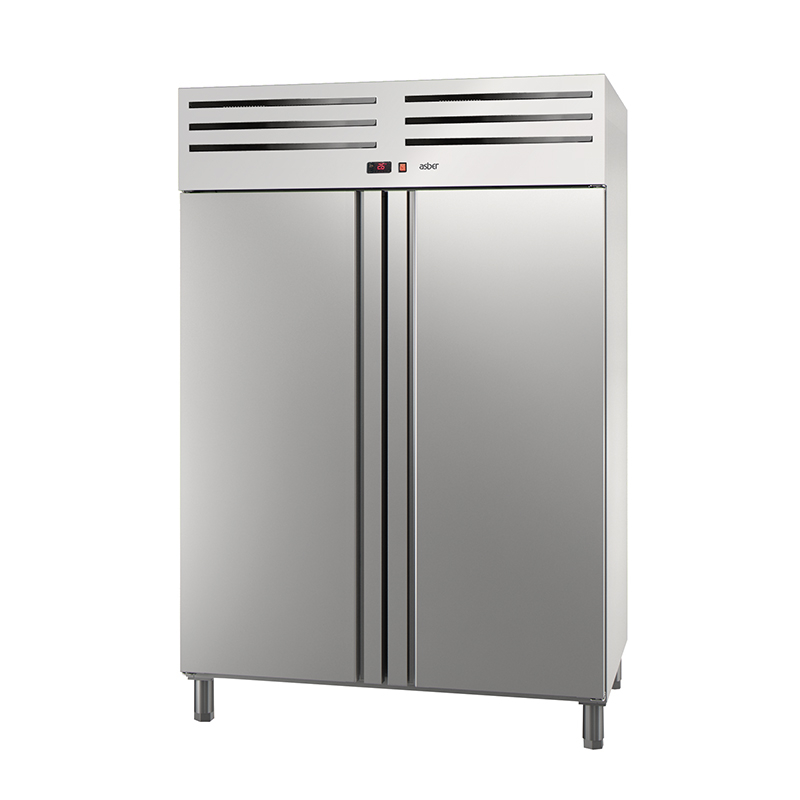

Freezers 1400 L GN 2/1
Specially manufactured in high-quality stainless steel for intensive professional applications, featuring a very robust design and perfect finishing.
50 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane insulation, injected under high pressure.
Stainless steel doors with ergonomic, full-length, robust, perfectly integrated handle. Equipped with self-closing hinge system and open position fixing.
Hinged doors with automatic return for a perfect closing that minimizes temperature gain. Doors have a 120° dwell position and close automatically at less than 90°. Door hinges are also reversible allowing the cabinet to be adapted on-site.
Equipped with a door lock in full door models as an option
Intuitive digital control allows temperature parameters to be adjusted easily and quickly
Luminous start-stop light button.
Forced draft evaporator with anti-corrosion cover
Intelligent Air Circulation System ensures perfect temperature consistency with its innovative airflow design.
Door switch stops the fan when door is opened to avoid cold air exiting the interior, thus saving energy.
Automatic evaporation of defrost water. Hot gas coming from the compressor is used to automatically evaporate defrost water, instead of by means of heating elements, achieving even less energy consumption.
Height-adjustable stainless steel legs. Height of the legs could be adjusted individually (130 mm – 200 mm) to enable convenient cleaning. Foot pedal and castors are available as an option.
Equipped with an inside LED light as an option.
Removable guiding rails enable more convenient cleaning operations without any additional tools. Placing and adjusting the wire grids at the desired height is possible without using extra rails. Epoxycoated wire grids to improve protection, allow storage of different packaging types and a maximum loading capacity of up to 40 kg
Removable pull-out/push-in magnetic door gasket to keep maximum hygiene and maintain the insulating properties.
Bottom panel with water drain especially designed to make cleaning operations quicker and easier, optimum for hygiene
Rounded edge interiors, easier cleaning operations to reduce potential dirt traps.
18 grid level positions for increased loading capacity, with a distance of 70 mm distance among them in full door version and 8 grid level positions with 70 mm distance among them in half door version.
Suitable for food containers GN 2/1 or 2 x GN 1/1; equipped with compatible rails.
Provided with 3 grid shelves GN 2/1 per each large door compartment.
Refrigerant gas: R290 Hydrocarbon (HC).
Working temperature of -17 ºC to -21 ºC in climate class IV conditions.
Supply voltage: 230 V 1+N – 50 Hz.
Model
Reference
DOOR NO
ENERGY EFFICIENCY CLASS
CONNECTION POWER (W)
GROSS VOLUME (L)
ANNUAL ENERGY CONSUMPTION (KWH)
EXTERNAL W X D X H DIMENSIONS (MM)
ECN-1402 HC
19060876
2
E
630
1301
4623
1388 x 826 x 2008
ECN-1403 HC
19060877
2
E
636
1301
4623
1388 x 826 x 2008
ECN-1404 HC
19060878
4 x 1/2
E
642
1301
4623
1388 x 826 x 2008
Technical datasheet
