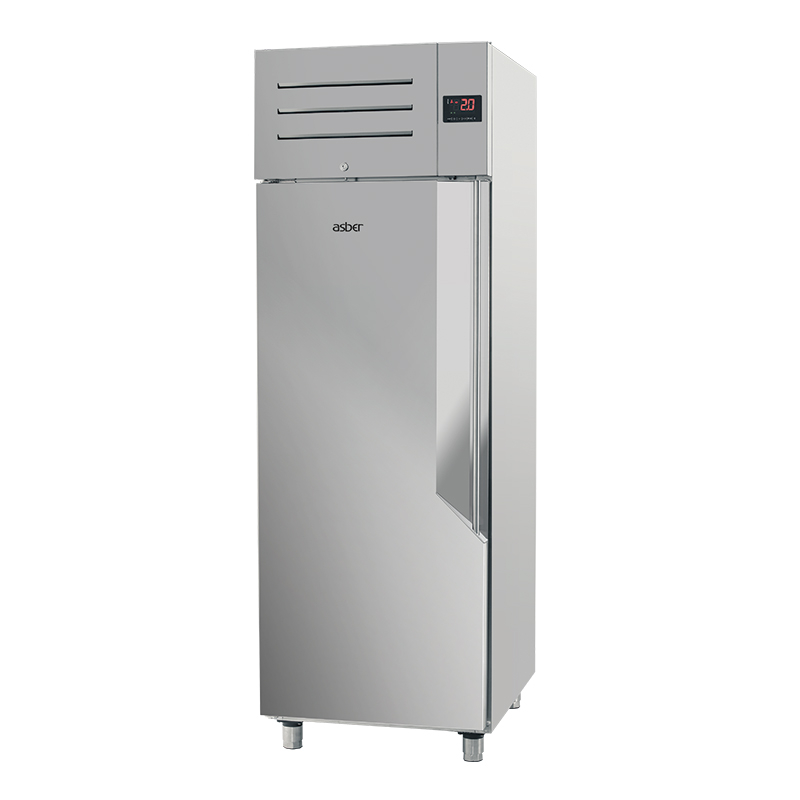

Refrigerators 700L GN2/1

Specially manufactured in high-quality stainless steel for intensive professional applications, featuring a very robust design and perfect finishing.
80 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane insulation, injected under high pressure.
Completely stainless steel made door with integrated handle and excellent finishing
Hinged doors with automatic return for a perfect closing that minimizes temperature gain. Doors have a 120° dwell position and close automatically at less than 90°. Door hinges are also reversible allowing the cabinet to be adapted on-site
Equipped with a door lock in full door models.
Extra-large, screen touch controller with easy adjustable parameters, energy saving mode and HACCP alarm system.
Low energy consumption LED lighting to display the interior of the cabinet.
Forced draft evaporator with anti-corrosion cover.
Intelligent Air Circulation system ensures perfect temperature consistency with its innovative airflow design.
Door switch stops the fan when door is opened to avoid cold air exiting the interior, thus saving energy.
Automatic evaporation of defrost water. Hot gas coming from the compressor is used to automatically evaporate defrost water, instead of by means of heating elements, achieving even less energy consumption.
Height-adjustable stainless steel legs. Height of the legs can be adjusted individually (95 mm – 115 mm) to enable convenient cleaning. Foot pedal and castors are available as an option.
Stamped guides with rounded edges enable more convenient cleaning operations without any difficulties. Placing and adjusting the grids is also easier than ever. Plastic-coated wire grids allow storage of different packaging types and have a maximum loading capacity of up to 40 kg.
Removable pull-out/push-in magnetic door gasket to keep maximum hygiene and maintain the insulating properties.
Stamped bottom panel with water drain especially designed to make cleaning operations quicker and easier
Rounded edge interiors, easier cleaning operations to reduce potential dirt traps.
24 grid level positions for increased loading capacity, with 55 mm distance among them.
Suitable for food containers GN 2/1 or 2 x GN 1/1.
Equipped with 3 grids GN 2/1 per each full door.
Refrigerant gas: R600a Hydrocarbon (HC).
Working temperature of 0 ºC to +8 ºC in climate Class V conditions.
Supply voltage: 230 V 1+N – 50 Hz.

Model	Reference	Door no	Climatic Class	Energy efficiency class	Connection power (W)	Gross volume (L)	Annual Energy consumption	External WxDxH dimensions
ACP-701 L	19086493	1	5	A	166	610	333	693 x 875 x 2119
ACP-701 R	19086494	1	5	A	166	610	333	693 x 875 x 2119

Technical datasheet
