CGE-21

Racking trolleys

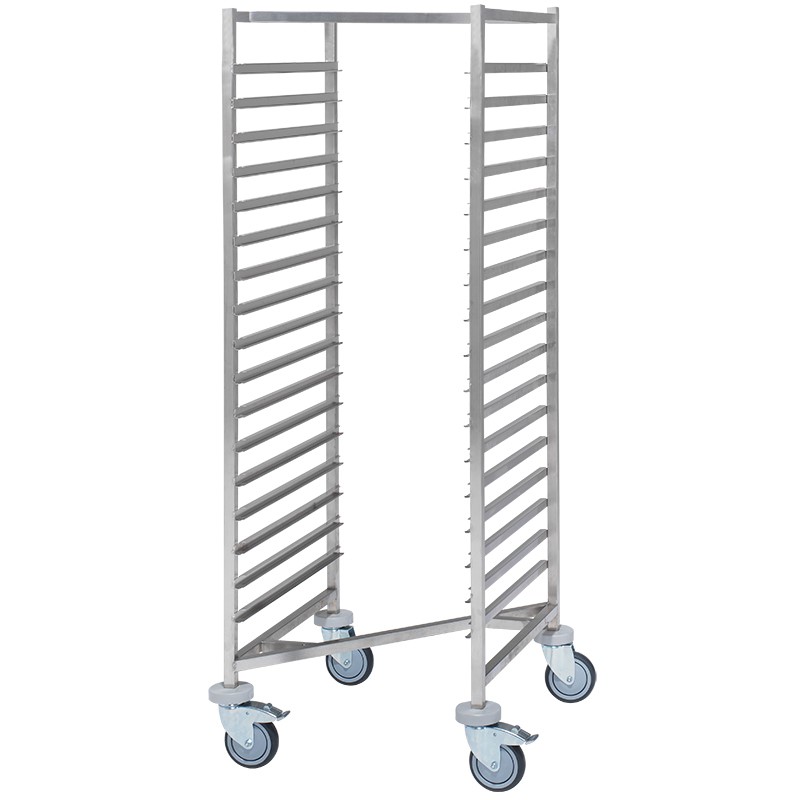

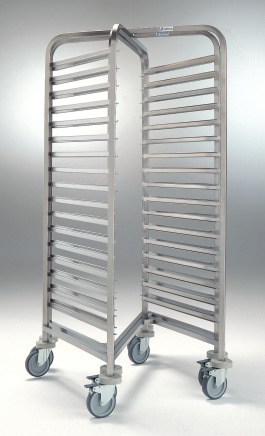

Nestable racking trolleys for GN pans

Click on the image to enlarge

×
Technical datasheet
Reference19005696
For traysGN 1/1 and GN 2/1
Rack rails number17

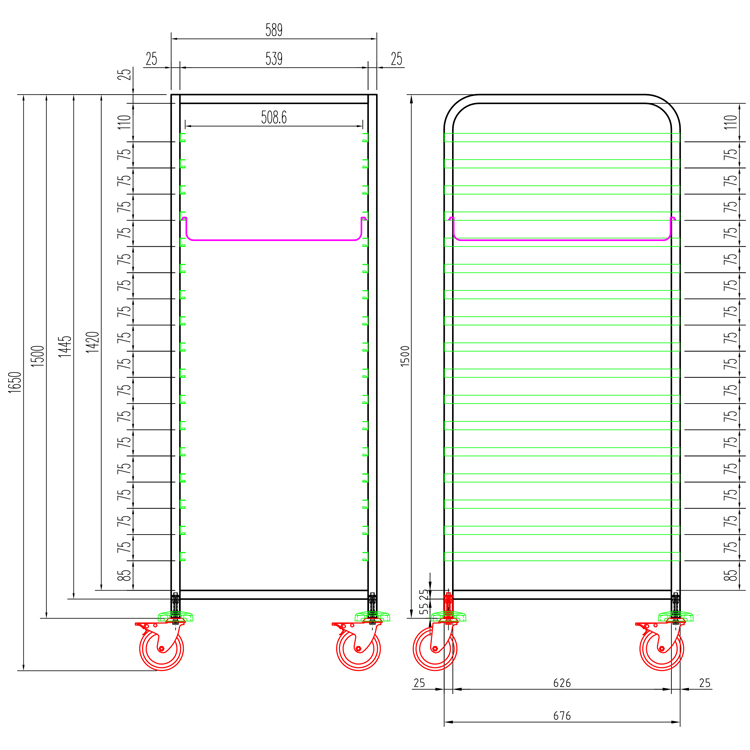

External dimensions (mm)660 x 750 x 1660

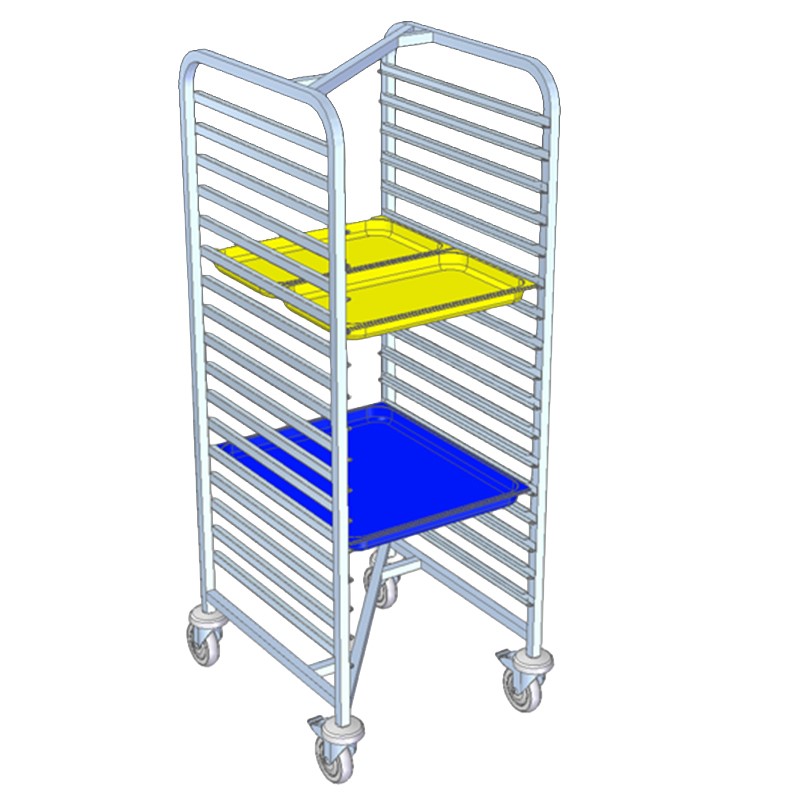

      • Especially designed for storing, moving and unloading Gastronorm pans.
      • Made of stainless steel.
      • Very robust, made of high-quality tube frame of 25x25 mm with 1.5 mm thickness.

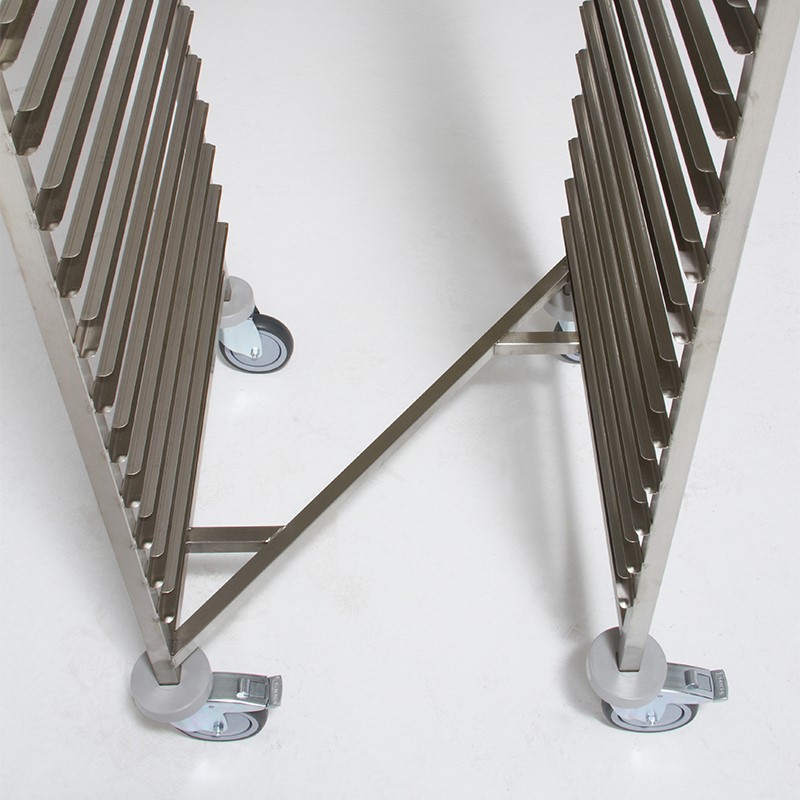

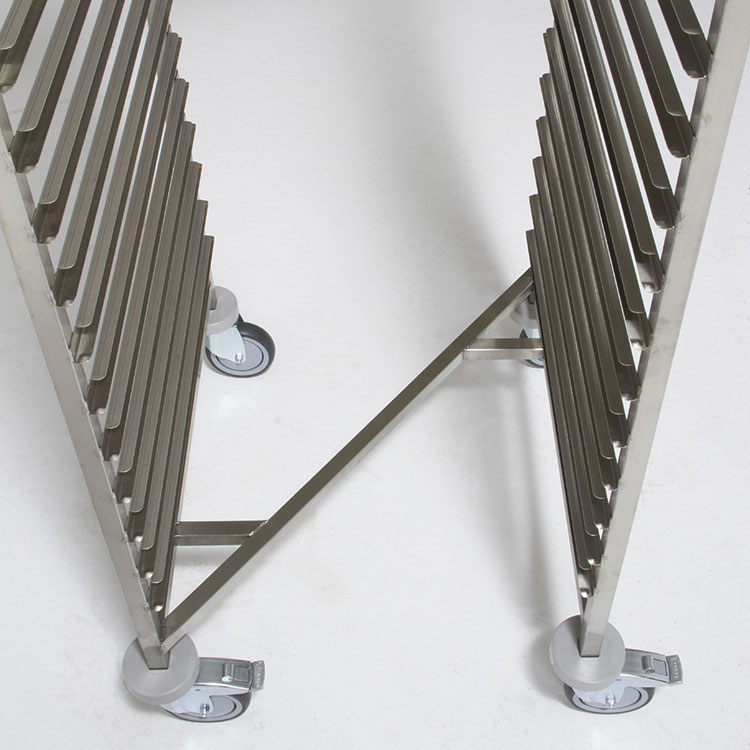

      • Special design that allows fitting trolleys one within the other, saving storage pace.
      • Seventeen (17) pairs of rack rails fully welded to the tube frame structure, with a separation between them of 75 mm.

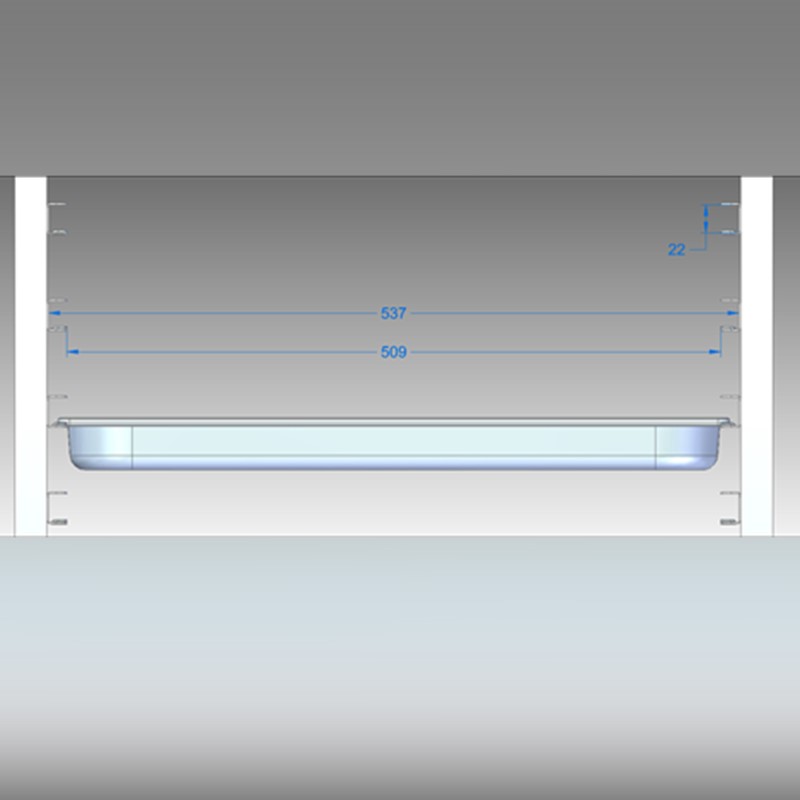

      • U-shape rack rails, to prevent pans from falling during unloading.
      • Four (4) castors of 125 mm diameter, two (2) of them with brakes for safer use. Non-marking, special rubber bumpers to protect against direct impacts in all four (4) castors.
Net High (mm)1705
Net Depth (mm)627
Net Width (mm)750
Gross weight / packaged (kg)65
Gross height / packaged (mm)1740
Gross width / packaged (mm)660
Gross length / packaged (mm)790
Net weight (kg)62
