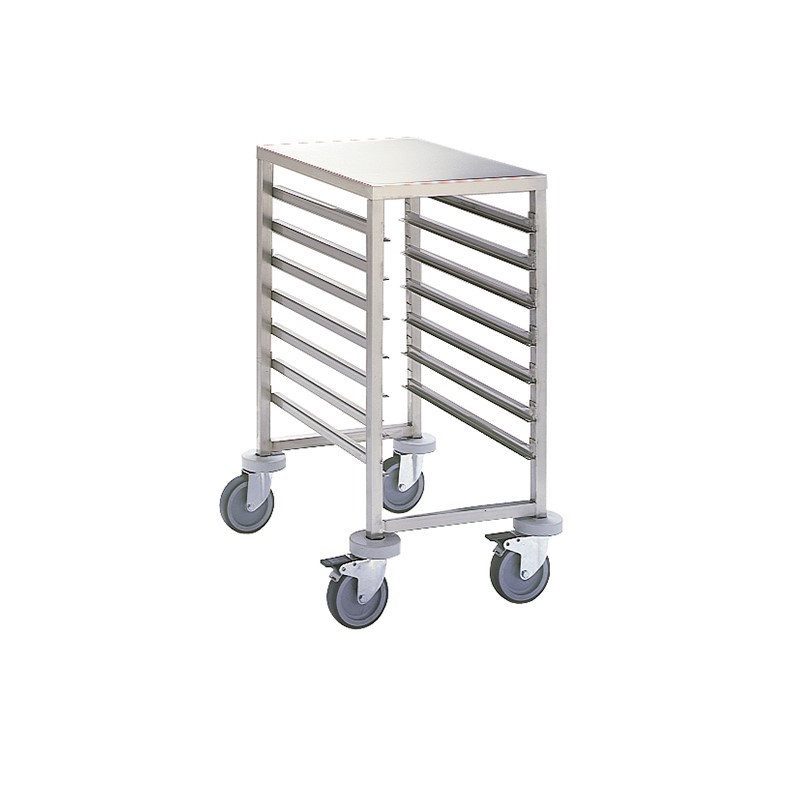

CGB-11

Racking trolleys

Racking trolleys with worktop

Click on the image to enlarge

×

Technical datasheet
Reference19004825
For traysGN 1/1
Rack rails number7

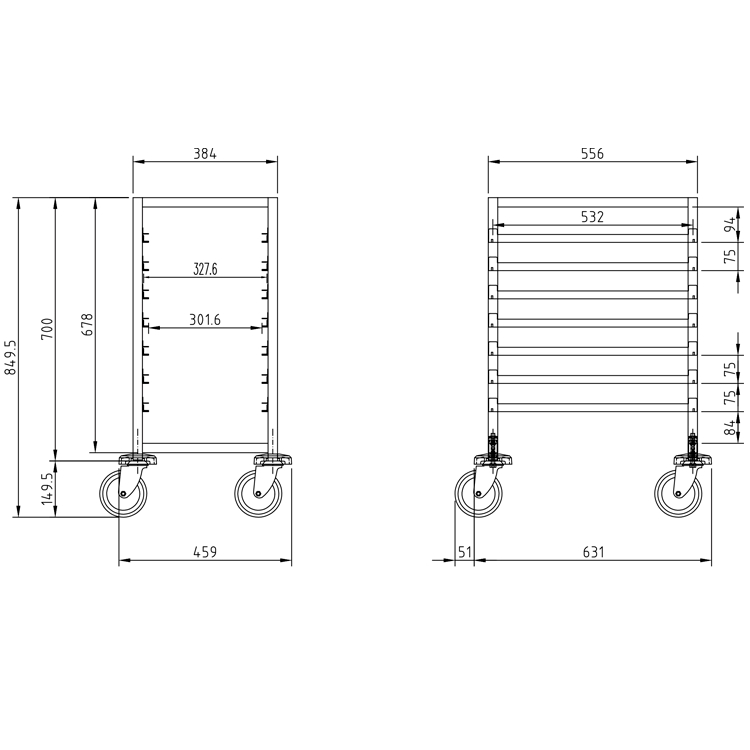

External dimensions (mm)460 x 630 x 850
      • Especially designed for storing, moving and unloading Gastronorm pans.
      • Made of stainless steel.
      • Very robust, made of high-quality tube frame of 25 x 25 mm with 1.5 mm thicknes
      • Rack rails fully welded to the tube frame structure.
      • U-shape rack rails, to prevent pans from falling during unloading.
      • Flat, large work surface on top. Sound-proof system underneath the shelf that greatly reduces rolling noise.
      • Four (4) castors of 125 mm diameter, two (2) of them with brakes for safer use. Non-marking, special rubber bumpers to protect against direct impacts in all four (4) castors.
Net High (mm)880
Net Depth (mm)490
Net Width (mm)660
Gross weight / packaged (kg)18
Gross height / packaged (mm)880
Gross width / packaged (mm)490
Gross length / packaged (mm)660
Net weight (kg)17
