GCPNZ-1402/2 HC

Green Line

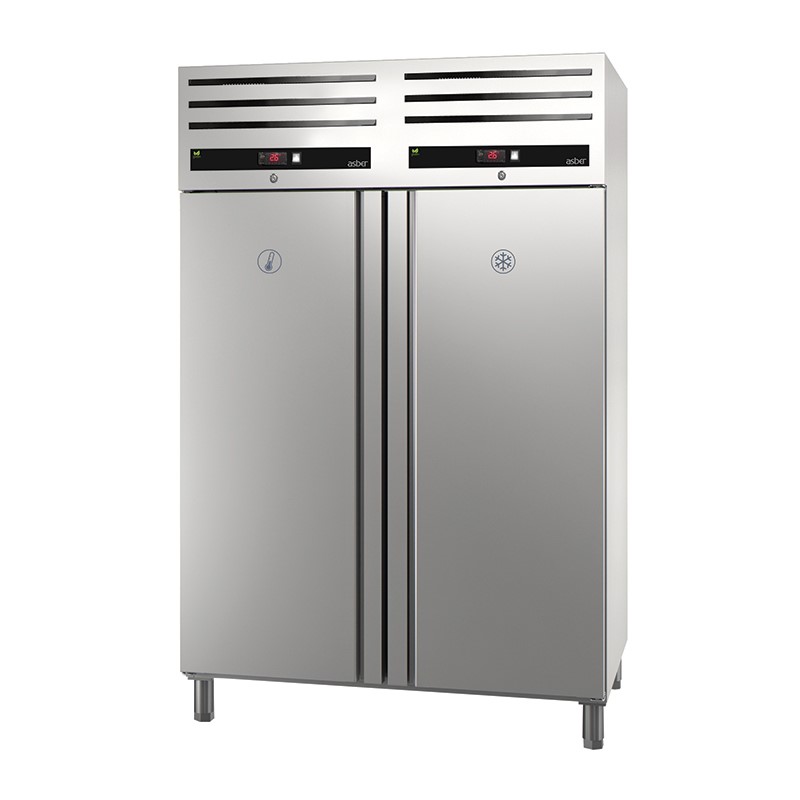

Combi Refrigerator/Freezer 1400L GN2/1

Click on the image to enlarge

×
Technical datasheet
Reference19059716
DOOR NO2
GROSS VOLUME (L)185 + 369
CONNECTION POWER (W)544 + 544

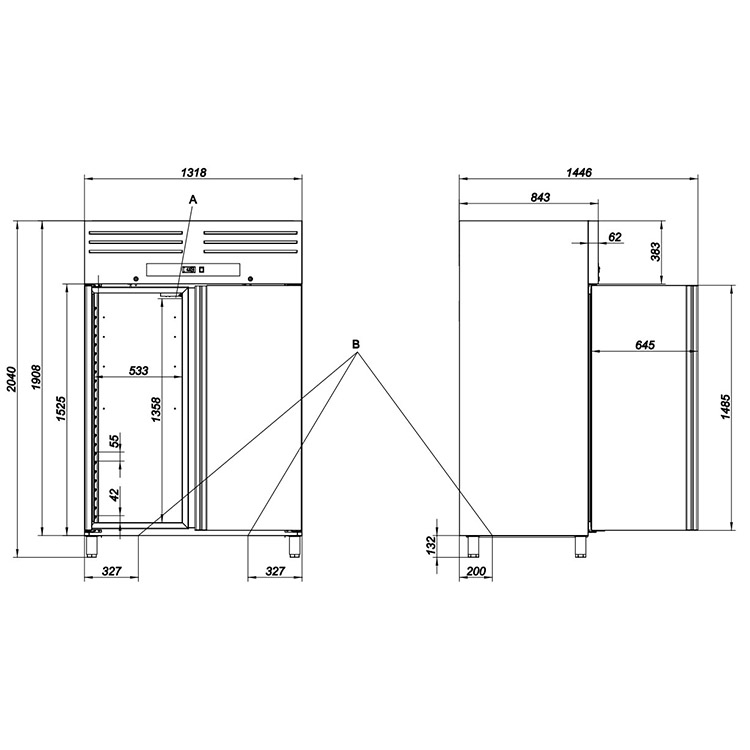

EXTERNAL W x D x H DIMENSIONS (MM)1318 x 842 x 2040
      • Specially manufactured in high-quality stainless steel for intensive professional applications, featuring a very robust design and perfect finishing.
      • One full door for refrigeration and one full door for freezer, each one with independent compressor system.
      • 60 mm thickness, CFC-free, high-density (40 kg/m³) polyurethane insulation, injected under high pressure.
      • Stainless steel doors with ergonomic, full-length, robust, perfectly integrated handle that ensures practical opening of the door that avoids dust and dirt collection.
      • Hinged doors with automatic return for a perfect closing that minimizes temperature gain. Doors have a 120° dwell position and close automatically at less than 90°. Door hinges are also reversible allowing the cabinet to be adapted on-site.
      • Equipped with a door lock in full door models.
      • Intuitive digital control allows temperature parameters to be adjusted easily and quickly.
      • Luminous start-stop light button in each compartment.
      • “Ventilation Gill” on the front panel keeping the cooling unit system ventilated and running more efficiently
      • Forced draft evaporator with anti-corrosion cover
      • Intelligent Air Circulation System ensures perfect temperature consistency with its innovative airflow design
      • Door switch stops the fan when door is opened to avoid cold air exiting the interior, thus saving energy.
      • Automatic evaporation of defrost water. Hot gas coming from the compressor is used to automatically evaporate defrost water, instead of by means of heating elements, achieving even less energy consumption.
      • Height-adjustable stainless steel legs. Height of the legs could be adjusted individually (130 mm – 200 mm) to enable convenient cleaning. Foot pedal and castors are available as an option.
      • Removable guiding rails enable more convenient cleaning operations without any additional tools. Placing and adjusting the wire grids at the desired height is possible without using extra rails. Epoxycoated wire grids, to improve protection, allow storage of different packaging types and have a maximum loading capacity of up to 40 kg.
      • Removable pull-out/push-in magnetic door gasket to keep maximum hygiene and maintain the insulating properties.
      • Bottom panel with water drain especially designed to make cleaning operations quicker and easier.
      • Rounded edge interiors, easier cleaning operations to reduce potential dirt traps.
      • Supply voltage: 230 V 1+N – 50 Hz.
Electric frequency50Hz
Electric power (KW)0,554
230 V three-phase wiring3X1,0MM2
Voltage230V
Amperage (A)0,9 A
Phases1N
Noise level (dB)55
Gas typeR-600a
Climate class4
Refrigeration power (KW)0,309
Condensation systemVent,
Noise level (dB)55
Termperature0 +8 ºC
SubFamiliaCO2
TeamAirtight
Cooling gas load (KG)0,098
GWP3
Numero compartimientosUno
Net High (mm)2040
Net Depth (mm)842
Net Width (mm)1318
Gross weight / packaged (kg)238
Gross height / packaged (mm)2100
Gross width / packaged (mm)920
Gross length / packaged (mm)1430
Net weight (kg)220
