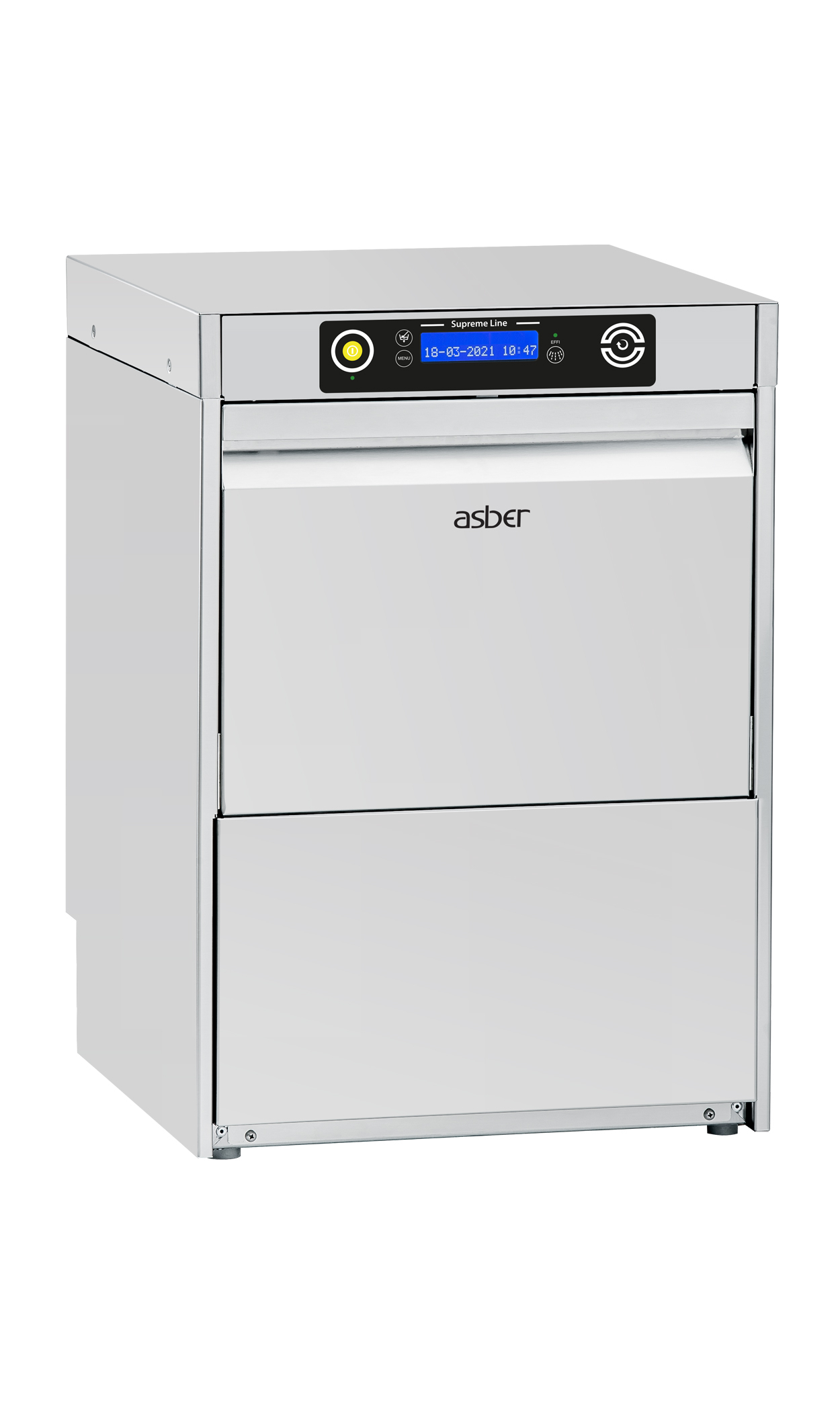

GS-400 B W DD
GS-400 B W DD
Supreme Line
Glasswashers - 400
Click on the image to enlarge
Reference
19086334
Baskets/hou
40
Door clearance (mm)
270

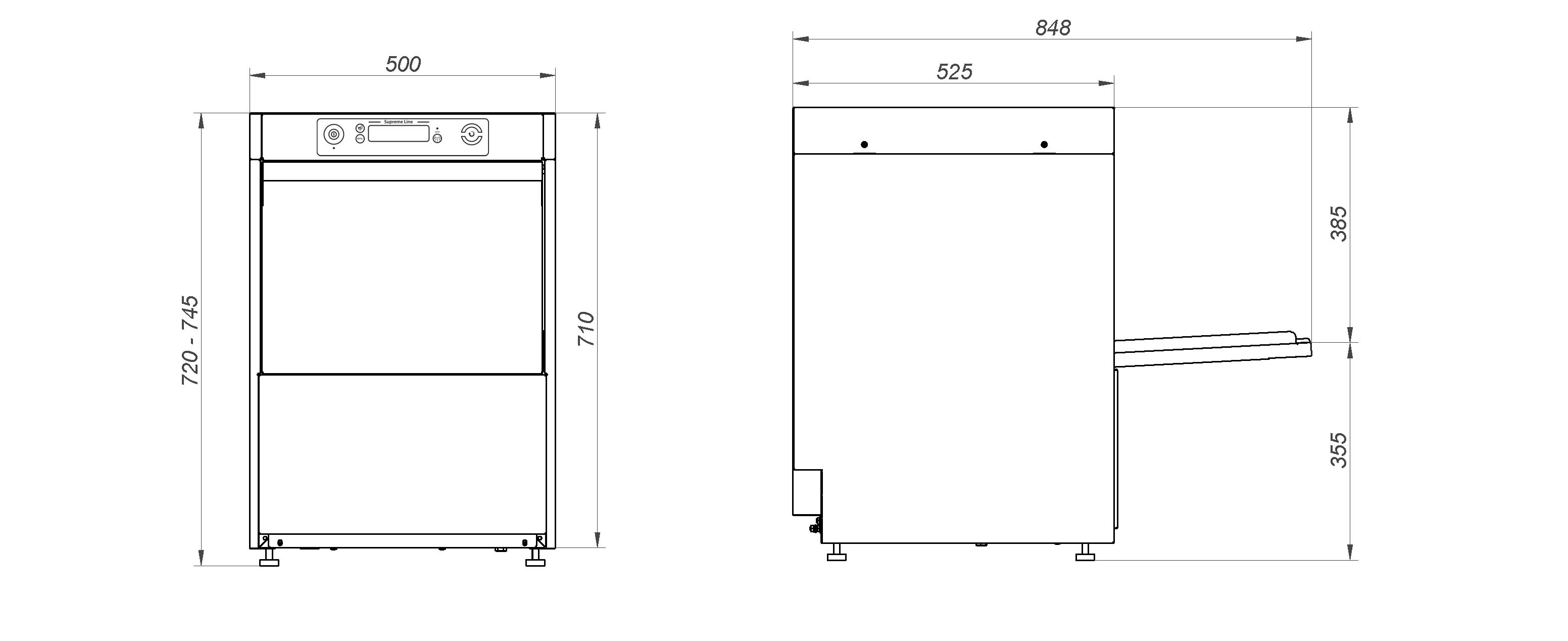

Dimensions (mm)
500 x 530 x 725
Detergent dispenser
Yes
Drain pump
Yes
Power (kW)
3.05
Voltage (V)
230V-1N-50Hz
Technical datasheet
Electronic and digital control panel.
Double wall insulation.
3 washing cycles of 90”/120”/180”.
Specific glass washing cycle in compliance with DIN10511.
Additional self-cleaning program.
Tank capacity: 15 l./Heating power: 2.0 kW
Boiler capacity: 4 l./Heating power: 2.8 kW
Wash pump power: 0.3 kW.
Rinsing consumption: 2.2 l/rinse.
Upper and lower washing and rinsing arms.
Thermostop function.
Built-in electric rinse-aid dispenser.
Built-in drain pump.
Built-in anti-blackflow air gap system and rinse pump.
Safety thermostat in washing tank and boiler.
Adjustable washing and rinsing temperature, set as:
Washing process: 60 ºC
Rinsing process: 85 ºC.
Supply voltage: 230 V 1N 50 Hz.
Accessories supplied: 2 baskets of 400 x 400 mm, 1 dish bracket and 1 basket for cutlery CU.
OPTIONAL MODELS WITH
Stainless steel washing and rinsing arms.
60 Hz version.
UK version with 2.4 kW boiler heating power and UK plug (13A).
Technical data
Related families
Documentation
Spare parts
Videos
DISHWASHING (ESTANDARIZATION)
Basket size
400x400
Break tank
Yes
Detergent dispenser
Yes
Double wall
No
Drain pump
Yes
Extra features
No
Generation
GRAND
Market
Rest
Other configurations
Non valuated
Range
Supreme
Tipo de calentamiento
Electric
Water softened
No
ELECTRICITY TECHNICAL SPECIFICATIONS
230 V three-phase wiring
3X1.5MM2
Amperage (A)
13.3A
Electric frequency
50Hz
Electric power (KW)
3.100
Engine power (KW)
0.260
Heating power (KW)
2.800
IPX
IPX3
Noise level (dB)
65
Phases
1N
Voltage
220-240V
PRODUCT SPECIFICATIONS
Gross Depth (mm)
570
Gross High (mm)
870
Gross weight (kg)
48,5
Gross Width (mm)
720
Net Depth (mm)
470
Net High (mm)
725
Net Width (mm)
530
