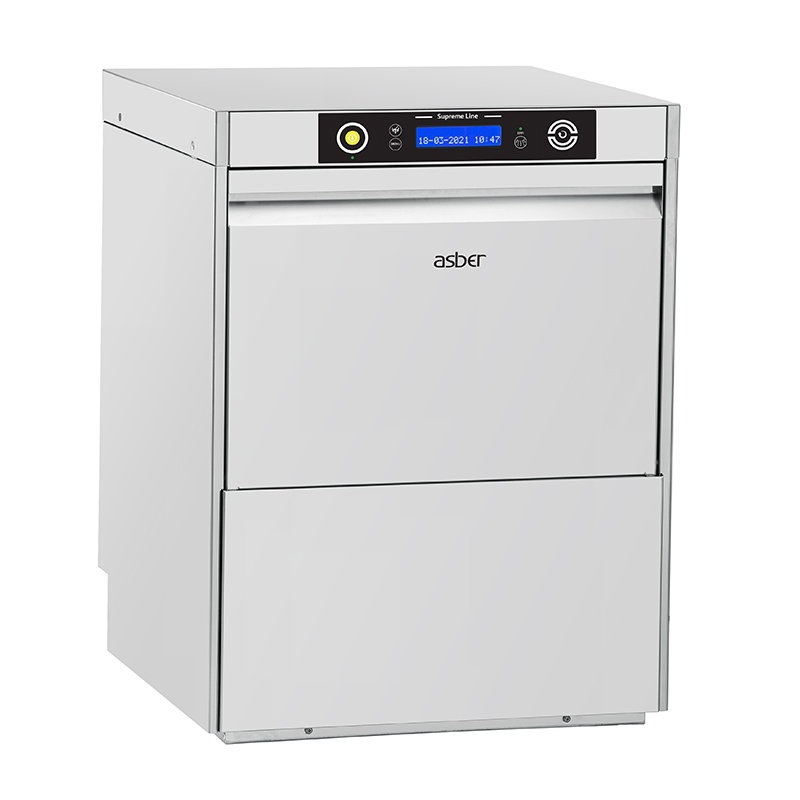

FRONT LOADING DISHWASHERS - 510



  • Electronic and digital control panel.
  • Double wall insulation.
  • 3 washing cycles of 90”/120”/180”.
  • Specific glass washing cycle in compliance with DIN10511.
  • Additional self-cleaning program.
  • Tank capacity: 25 l./Heating power: 5.6 kW.
  • Boiler capacity: 7 l./Heating power: 2.0 kW.
  • Wash pump power: 0.6 kW.
  • Rinsing consumption: 2.6 l/rinse.
  • Upper and lower washing and rinsing arms.
  • Thermostop function.
  • Soft washing start.
  • Stainless steel washing arms.
  • Built-in electric rinse-aid dispenser.
  • Built-in drain pump.
  • Built-in anti-blackflow air gap system and rinse pump.
  • Wash tank stainless steel filter.
  • Safety thermostat in washing tank and boiler.
  • Adjustable washing and rinsing temperature, set as: Washing process: 60 ºC Rinsing process: 85 ºC.
  • Multi-Voltage: 400 V/ 3N, 230 V/ 3~, 230 V/ 1N.
  • Adjustable boiler heating power (Multi-Power): 2.8 kW/3.7 kW/5.6 kW.
  • Accessories supplied: 1 basket CP-16/18, 1 basket CT-10 and 1 basket for cutlery CU-7.
  • OPTIONAL MODELS WITH
  • Built in water softener.
  • Stainless steel rinsing arms.
  • 60 Hz version.
  • UK version in 230 V 1N 3x6 mm² power cord (30 A).
ModelReferenceBaskets/ hourDoor clearance (mm)Dimensions (mm)Detergent dispenserDrain pumpRinse PumpWater SoftenerPower (kW)Voltage (V)
GS-510 B DD F1908633640320625 x 620 x 830YesYesYesNo6,2400V-3N-50Hz
GS-510 SOFT B DD F1908633840320625 x 620 x 830YesYesYesYes6,2400V-3N-50Hz

Technical datasheet
