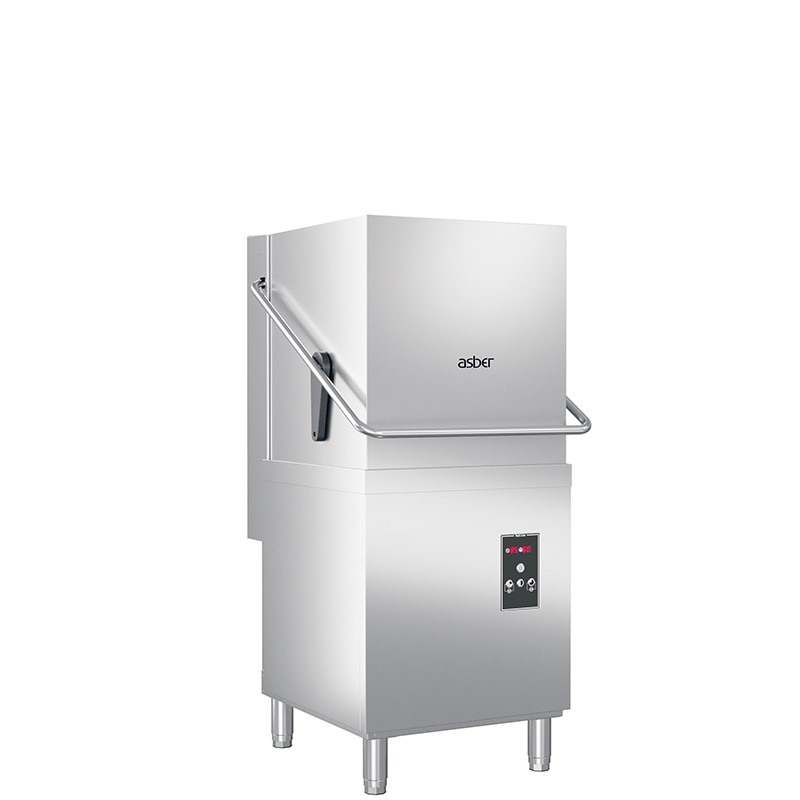

Pass-Through dishwashers H510



  • Electronic control panel.
  • 3 washing cycles: 55” / 75” / 120”.
  • Continuous cycle up to the manual stop.
  • Tank capacity: 33 l. / Heating power: 4.5 kW.
  • Boiler capacity: 7 l. / Heating power: 9.0 kW.
  • Wash pump power: 0.75 kW.
  • Rinsing consumption: 2.6 l/rinse.
  • Upper and lower washing and rinsing arms.
  • Stainless steel washing arms.
  • Thermostop function.
  • Soft washing start.
  • Wash tank and boiler temperature display.
  • Built-in rinse-aid dispenser.
  • Anti backflow valve fitted.
  • Tank filter in composite material.
  • Single skin hood.
  • Safety thermostat in washing tank and boiler.
  • Temperature adjustement: wash 60 ºC and rinse 85 ºC.
  • Multi-Voltage: 400 V/ 3N, 230 V/ 3~.
  • Adjustable boiler heating power (Multi-Power).
  • Accessories supplied: 1 basket CP-16/18, 1 basket CT-10 and 1 basket for cutlery CU-7.
  • OPTIONAL MODELS WITH
  • Heat recovery.
  • Double skin hood.
  • Built-in drain pump.
  • Built-in anti-backflow air gap system and rinse pump.
  • Built-in electric rinse-aid dispenser (set up as default in W models).
  • Built-in detergent dispenser.
  • Wash tank stainless steel filter.
  • Stainless steel rinsing arms.
  • 60 Hz version.
ModelReferenceBaskets / hourDoor clearance (mm)Dimensions (mm)Detergent dispenserDrain pumpRinse pumpHeat recoveryPower (kW)Voltage (V)
GTX-H51019104758
GTX-H510 DD19104759
GTX-H510 B19104760
GTX-H510 B DD19104761
GTX-H510 W1910476265440630 x 770 x 1485NoNoYesNo14.25400 V/ 3N 50 Hz
GTX-H510 W DD19104763
GTX-H510 B W19104764
GTX-H510 B W DD19104765

Technical datasheet
