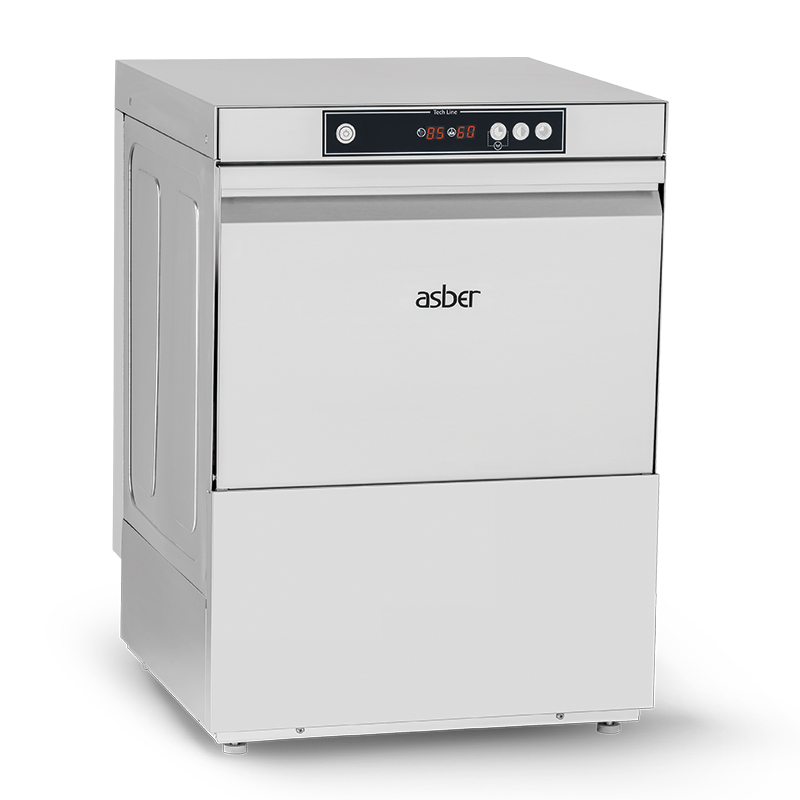

FRONT LOADING DISHWASHERS - 510

Electronic control panel.
3 washing cycle of 90” / 120" / 180”
Tank capacity: 25 l. / Heating power: 2.8 kw.
Boiler capacity: 7 l. / Heating power: 5.6 kw.
Wash pump power: 0.6 kw.
Rinsing consumption: 2.7 l/rinse.
Upper and lower washing and rinsing arms.
COLD models: Independent cycle for cold rinsing useful for cooling glasses immediately after washing.
Stainless steel washing arms.
Thermostop function.
Soft washing start.
Wash tank and boiler temperature display.
Built-in rinse-aid dispenser.
Anti-backflow valve fitted.
Safety thermostat in washing tank and boiler.
Temperature adjustement: wash 60 ºC and rinse 85 ºC.
Multi-Voltage: 400 V/ 3N, 230 V/ 3~, 230 V/ 1N
Adjustable boiler heating power (Multi-Power): 2.8 kW/3.7 kW/5.6 kW.
Accessories supplied: 1 basket CP-16/18, 1 basket CT-10 and 1 basket for cutlery CU-7.
OPTIONAL MODELS WITH
Built-in drain pump.
Built-in anti-backflow air gap system and rinse pump.
Built-in electric rinse-aid dispenser (set up as default in W models).
Built-in detergent dispenser.
Built-in water softener.
Wash tank stainless steel filter.
Stainless steel rinsing arms.
60 Hz version.
UK version with 2 kW tank heating power, 5.6 kW in boiler heating power and 3x6 mm² power cord (230 V/ 1N, 30 A).

Model	Reference	Baskets/ hour	Door clearance (mm)	Dimensions (mm)	Detergent dispenser	Drain pump	Rinse Pump	Water Softener	Cold rinsing	Power (kW)	Voltage (V)
GT-510	19053412	40	320	600 x 605 x 830	No	No	No	No	No	6.2	400V-3N-50Hz
GT-510 DD	19059582	40	320	600 x 605 x 830	Yes	No	No	No	No	6.2	400 V/ 3N 50 Hz
GT-510 B	19059583	40	320	600 x 605 x 830	No	Yes	No	No	No	6.2	400 V/ 3N 50 Hz
GT-510 B DD	19059584	40	320	600 x 605 x 830	Yes	Yes	No	No	No	6.2	400 V/ 3N 50 Hz
GT-510 W	19068372	40	320	600 x 605 x 830	No	No	Yes	No	No	6.2	400 V/ 3N 50 Hz
GT-510 W DD	19059585	40	320	600 x 605 x 830	Yes	No	Yes	No	No	6.2	400 V/ 3N 50 Hz
GT-510 W B	19068373	40	320	600 x 605 x 830	No	Yes	Yes	No	No	6.2	400 V/ 3N 50 Hz
GT-510 W B DD	19059586	40	320	600 x 605 x 830	Yes	Yes	Yes	No	No	6.2	400 V/ 3N 50 Hz
GT-510 SOFT	19068339	40	320	600 x 605 x 830	No	No	No	Yes	No	6.2	400 V/ 3N 50 Hz
GT-510 SOFT DD	19068370	40	320	600 x 605 x 830	Yes	No	No	Yes	No	6.2	400 V/ 3N 50 Hz
GT-510 SOFT B	19068371	40	320	600 x 605 x 830	No	Yes	No	Yes	No	6.2	400 V/ 3N 50 Hz
GT-510 SOFT B DD	19060733	40	320	600 x 605 x 830	Yes	Yes	no	Yes	No	6.2	400 V/ 3N 50 Hz

Model

Reference

Baskets/ hour

Door clearance (mm)

Dimensions (mm)

Detergent dispenser

Drain pump

Rinse Pump

Water Softener

Cold rinsing

Power (kW)

Voltage (V)

GT-510

19053412

320

600 x 605 x 830

6.2

400V-3N-50Hz

GT-510 DD

19059582

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 B

19059583

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 B DD

19059584

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 W

19068372

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 W DD

19059585

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 W B

19068373

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 W B DD

19059586

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 SOFT

19068339

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 SOFT DD

19068370

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 SOFT B

19068371

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz

GT-510 SOFT B DD

19060733

320

600 x 605 x 830

Yes

6.2

400 V/ 3N 50 Hz
