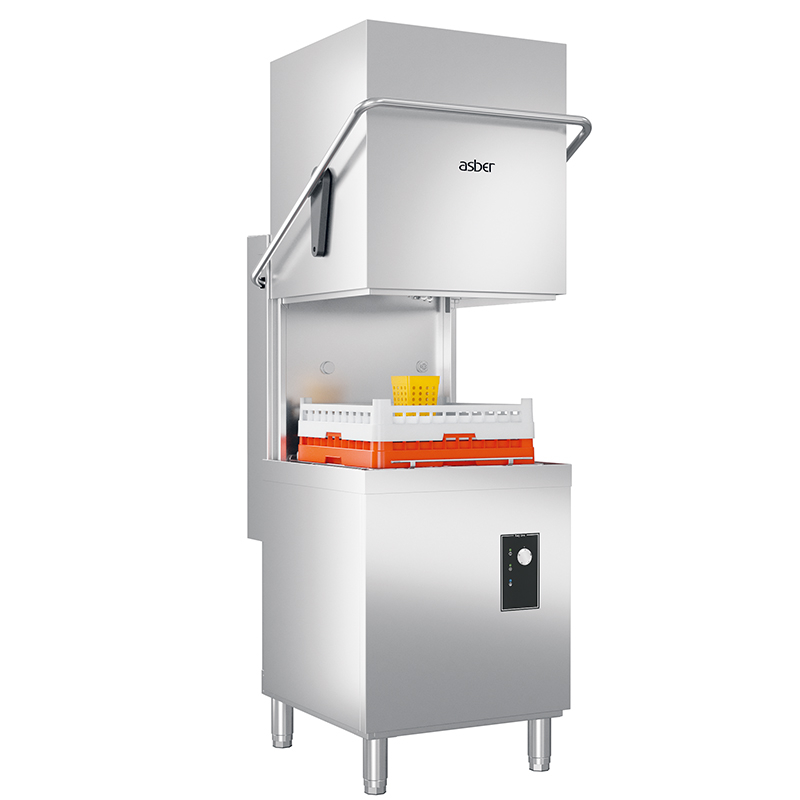

Pass-Through dishwashers GEX-H500

Electromechanical control panel.
2 washing cycle of 90”/180”.
Tank capacity: 33 l./Heating power: 4.5 kW.
Boiler capacity: 7 l./Heating power: 6.0 kW.
Wash pump power: 0.75 kW.
Rinsing consumption: 2.6 l/rinse.
Upper and lower washing and rinsing arms.
Stainless steel washing arms.
Built-in rinse-aid dispenser.
Anti backflow valve fitted.
Tank filter in composite material.
Single skin hood.
Safety thermostat in washing tank and boiler.
Temperature adjustement: wash 60 ºC and rinse 85 ºC.
Multi-Voltage: 400 V/ 3N, 230 V/ 3~.
Adjustable boiler heating power (Multi-Power).
Accessories supplied: 1 basket CP-16/18, 1 basket CT-10 and 1 basket for cutlery CU-7.
OPTIONAL MODELS WITH
Double skin hood.
Built-in drain pump.
Built-in electric rinse-aid dispenser
Built-in detergent dispenser.
Wash tank stainless steel filter.
Stainless steel rinsing arms.
60 Hz version.

Model	Reference	Baskets/hour	Door clearance (mm)	Dimensions (mm)	Detergent dispenser	Drain pump	Power (kW)	Voltage (V)
GEX-H500	19104672	40	440	630 x 770 x 1485	No	No	11.25	400 V/ 3N 50 Hz
GEX-H500 DD	19104673	40	440	630 x 770 x 1485	yes	No	11.25	400 V/ 3N 50 Hz
GEX-H500 B	19104674	40	440	630 x 770 x 1485	No	Yes	11.25	400 V/ 3N 50 Hz
GEX-H500 B DD	19104675	40	440	630 x 770 x 1485	Yes	Yes	11.25	400 V/ 3N 50 Hz
