Products

Dishwashing

Accessories for dishwashers

Welded sinks for dishwashers

600 - 700 mm

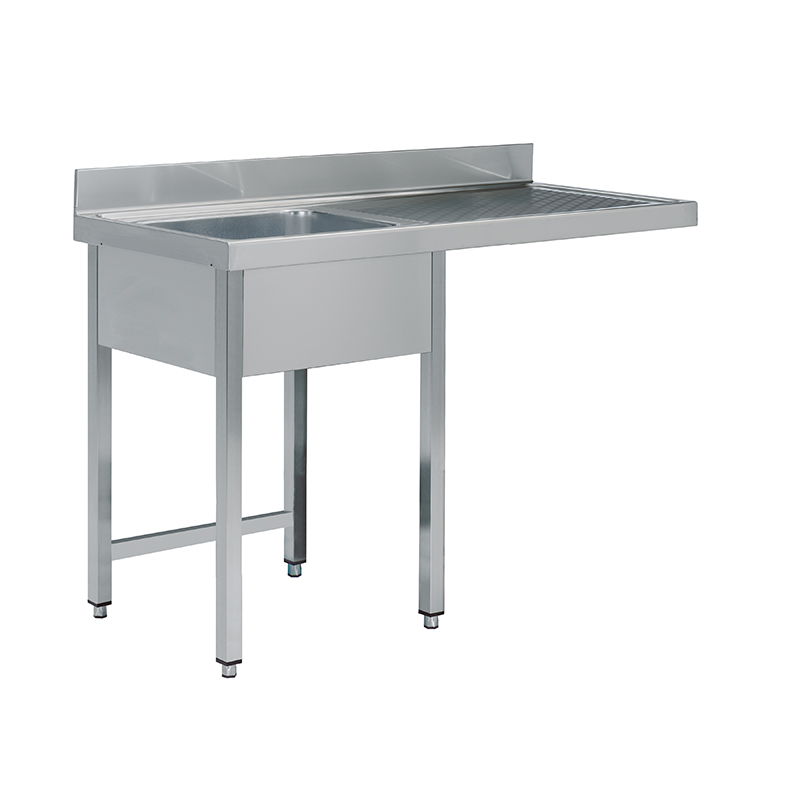

Fully welded units 600 and 700 mm wide.
Especially designed to incorporate standard dishwashers of 600 x 600 mm, or standard glasswashers of 430 x 475 mm, under the draining board.
Height-adjustable legs of 40 x 40 mm, to accommodate dishwasher up to a height of 850 mm.
Fully welded backsplash of 100 x 15 mm.
Seamless deep drown bowls with sound deadening.
Seamless worktops are drawn out of a single sheet of 1 mm thick steel.
Legs are brought forward 60 mm from the wall to accommodate sanitary clamp bend and water supply installation.
Sink bowls are supplied with drain valve included.

Model	Reference	Model drainer position	External dimensions (mm)	Dimensions bowl (mm)
STWD-126/1 R B	19020066	Right	1200 x 600	500 x 400 x 250
STWD-126/1 L B	19020078	Left	1200 x 600	500 x 400 x 250
STWD-146/1 R B	19020067	Right	1400 x 600	500 x 400 x 250
STWD-146/1 L B	19020079	Left	1400 x 600	500 x 400 x 250
STWD-166/1 R B	19020068	Right	1600 x 600	500 x 400 x 250
STWD-166/1 L B	19020080	Left	1600 x 600	500 x 400 x 250
STWD-186/2 R B	19020069	Right	1800 x 600	500 x 400 x 250
STWD-186/2 L B	19020081	Left	1800 x 600	500 x 400 x 250
STWD-206/2 R B	19020070	Right	2000 x 600	500 x 400 x 250
STWD-206/2 L B	19020082	Left	2000 x 600	500 x 400 x 250
STWD-127/1 R B	19020071	Right	1200 x 700	500 x 500 x 300
STWD-127/1 L B	19020083	Left	1200 x 700	500 x 500 x300
STWD-147/1 R B	19020072	Right	1400 x 700	500 x 500 x 300
STWD-147/1 L B	19020084	Left	1400 x 700	500 x 500 x300
STWD-167/1 R B	19020073	Right	1600 x 700	500 x 500 x 300
STWD-167/1 L B	19020085	Left	1600 x 700	500 x 500 x300
STWD-187/2 R B	19020075	Right	1800 x 700	500 x 500 x 300
STWD-187/2 L B	19020087	Left	1800 x 700	500 x 500 x300
STWD-207/2 R B	19020076	Right	2000 x 700	500 x 500 x 300
STWD-207/2 L B	19020088	Left	2000 x 700	500 x 500 x300
